Bullet thermal QVGA 45° 30Hz

Bullet thermal QVGA 45° 30Hz

$7,150.00

Key Specifications Key specifications Sensor type Uncooled microbolometer (VOx) Resolution 320 x 240 Sensor technology Thermal imaging WDR technology Thermal sensitivity: < 30 mK at 25 °C (77 °F) Frame rate (fps) 1 fps – 30 fps Lens focal length (mm) 5 mm Horizontal field of view (°) 45° Field of view adjustment Fixed lens Video compression H.264; H.265; M-JPEG IP rating IP66; IP67 Impact protection IK10 Operating temperature -40 °C – 55 °C (-40 °F – 131 °F) Analytics (built-in) IVA Pro Buildings; IVA Pro Perimeter

SKU: NBT-8700-F05QF
Category: , ,
Tags: , , , , , , , , ,
Brands:

Description

Bullet thermal QVGA 45° 30Hz

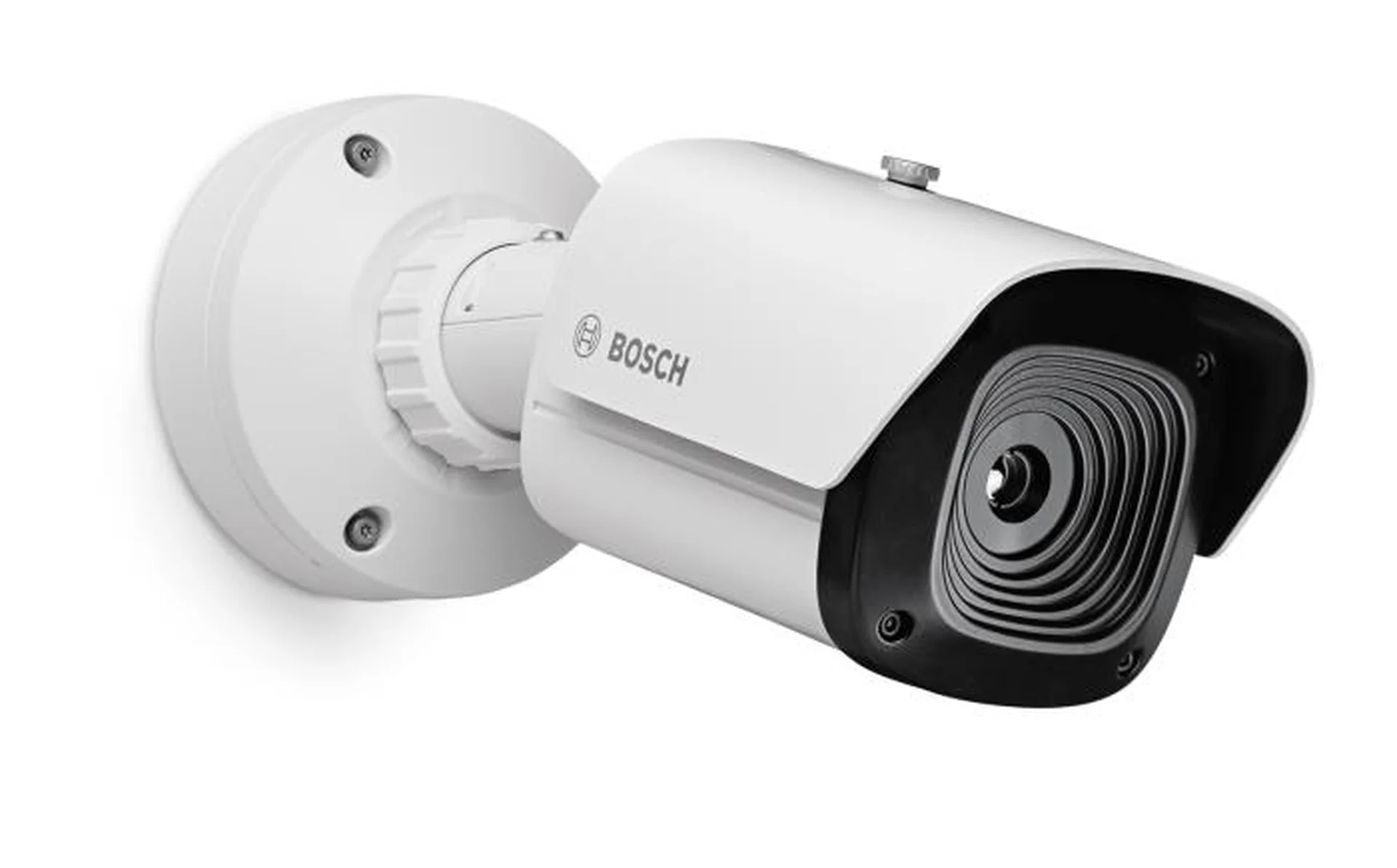

The DINION thermal 8100i – QVGA family offers detection without visible light to meet diverse mission-critical perimeter detection needs with multiple lens options from telephoto to wide-angle. Advanced thermal imaging and built-in IVA Pro analytics combine to help achieve an ultra-low false alarm rate, while AI-based (3D) autocalibration supports rapid installation.

Commercial Type No: NBT-8700-F05QF

  • Offers lens options from telephoto to wide-angle to suit diverse monitoring needs.
  • Thermal imaging and IVA Pro Perimeter help achieve an ultra-low false alarm rate.
  • QVGA thermal imaging.
  • Rugged housing and cybersecure.
  • AI-based (3D) autocalibration resulting in a fast and simple installation.

Additional information

Resolution

320 x 240
Sensor

Uncooled microbolometer (VOx)
Sensor Technology

Thermal imaging
Lens

5 mm fixed
FPS

1-30 fps
Field of View

45°
IP Rating

IP66; IP67
IK Rating

IK10
Analytics

IVA Pro Buildings; IVA Pro Perimeter
